Product FORGED STEEL VALVES

Fitton Industrial

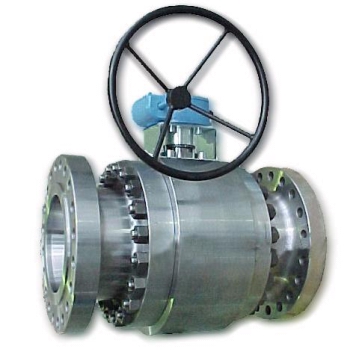

BALL VALVE

Size : 1/4" to 3"
Design Standard : API 6D, API 608,API 607F, ASME B16.34
Type : Three Piece, Turnion
Pressure Rating : 800# & 1500#
Material of Construction : Forged Carbon Steel (ASRM A105) & Forged Stainless Steel (ASTM A 182 F 304, 304 L, 316, 316L)
End Connection : Screwed End(BSP/NPT), Socket Weld End / Butt Weld End

Fitton Industrial

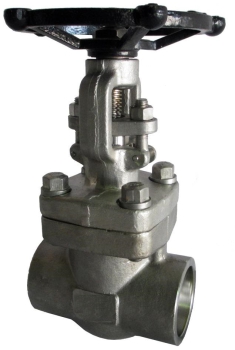

GATE VALVES

Size : 1/4" to 2"
Design Standard : API602, BS5352 and ANSI B16.34
Type : Bolted bonnet, outside screw and yoke
Pressure Rating : 800# & 1500#
Material of Construction : Forged Carbon Steel (ASRM A105) & Forged Stainless Steel (ASTM A 182 F 304, 304 L, 316, 316L)
End Connection : Screwed End(BSP/NPT), Socket Weld End / Butt Weld End

Fitton Industrial

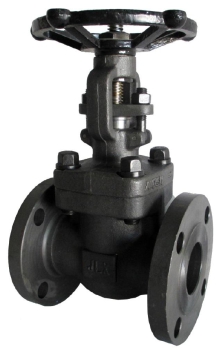

GLOBE VALVES

Size : 1/4" to 2"
Design Standard : API602, BS5352, ANSI B16.34.
Type : Bolted Bonnet, O.S & Y. Rising Spindle, Plug Type Disc
Pressure Rating : 800# & 1500#
Material of Construction : Forged Carbon Steel (ASTM) A 105) & Forged Stainless Steel (ASTM A 182, F 304, 304L, 316, 316L)
End Connection : Screwed End(BSP/NPT), Socket Weld End / Butt Weld End

Fitton Industrial

CHECK VALVES

Size : 1/4" to 2"
Design Standard : API602, BS5352, and ANSI B16.34
Type : Bolted Cover Piston, Lift Type, Swing Type
Pressure Rating : 800# & 1500#
Material of Construction : Forged Carbon Steel (ASTM.A105) & Forged Stainless Steel (ASTM A 182,F 304, 304L, 316, 316L)
End Connection : Screwed End(BSP/NPT), Socket Weld End / Butt Weld End

Fitton Industrial

PLUG VALVE

Size : 1/4" to 2"
Design Standard : API 6D, BS 599, API 607F
Type : Pressure Balance
Pressure Rating : 800# & 1500#
Material of Construction : Forged Carbon Steel (ASTM) A 105) & Forged Stainless Steel (ASTM A 182, F 304, 304L, 316, 316L)
End Connection : Screwed End(BSP/NPT), Socket Weld End / Butt Weld End
