Product CAST STEEL VALVES

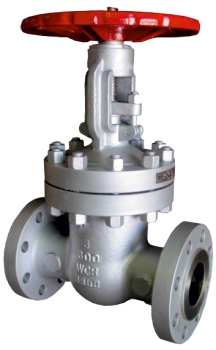

GATE VALVES

Size : 2" to 24”
Design Standard : API 600, API6D and ASME B16.34
Type : Bolted BonnetO.S & Y.Rising Spindle, Solid Taper Wedge/Flexible Wedge
Pressure Rating : 150#, 300#, 400#, 600#, 900#, 1500# & 2500#
Material of Construction : Cast Carbon Steel (A 216 Gr. WCB) Cast Stainless Steel (A 351 Gr. CF8, CF 8M, CF3, CF 3M, CF 8C, DIN 4136 etc) Alloy-20 (A 351 Gr. CN7M) Hastalloy B & C. Alloy Steel (ASTMA 217 Gr. WC 6/9)
End Connection : FLANGED END , BUTT WELD END

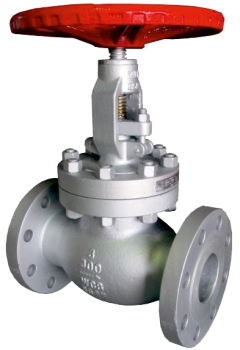

Size : 2" to 24”
Design Standard : API 600, API6D and ASME B16.34
Type : Bolted BonnetO.S & Y.Rising Spindle, Plug Type Disc
Pressure Rating : 150#, 300#, 600#, 900#, 1500# & 2500#
Material of Construction : Cast Carbon Steel (A216 Gr. WCB) Cast Stainless Steel (A 351 Gr. CF8, CF 8M, CF3, CF 3M, CF 8C, DIN 4136 etc.) Alloy 20 (A 351 Gr. CN7M) Hastalloy B & C. Alloy Steel (A 217 Gr. WC 6/9)
End Connection : FLANGED END , BUTT WELD END

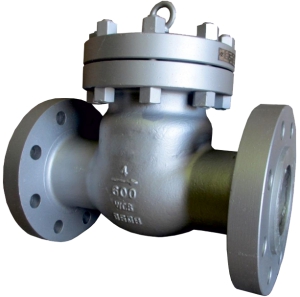

Size : 2" to 24”
Design Standard : API 600, API6D and ASME B16.34
Type : Bolted Cover,Swing Type / Piston Lift Type
Pressure Rating : 150#, 300#, 600#, 900#, 1500# & 2500#
Material of Construction : Cast Carbon Steel (A 216 Gr. WCB) Cast Stainless Steel (A 351 Gr. CF8, 8M, FC3, CF 3M, CF 8C, DIN 4136 etc.) Alloy-20 (A 351 Gr. CN 7M) Hastalloy B & C. Alloy Steel (A 217 Gr. WC 6/9)
End Connection : FLANGED END , BUTT WELD END

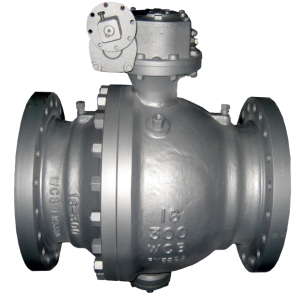

Size : 2" to 24”
Design Standard : API 6D, API 608,API 607F, ASME B16.34
Type : Three Piece, Single Piece, Two Piece, RP & FP, Turnion Mounted/Side Entry/Type Entry, Fire Safe
Pressure Rating : 150#, 300#, 600#, 900#, 1500# & 2500#
Material of Construction : 1) Bar Stock in Carbon Steel (EN8) or Stainless Steel (304, 316, 304L. 316L, 321) Alloy-20 and Hastalloy B & C 2) Casting in Carbon Steel (A 216 Gr. WCB), Stainless Steel (A351 Gr. GF8, CF 8M,) CF3, CF3M, CF 8C, DIN 4136) Alloy-20 (A 351 Gr. GN 7M) Hastelloy B & C
End Connection : FLANGED END , BUTT WELD END

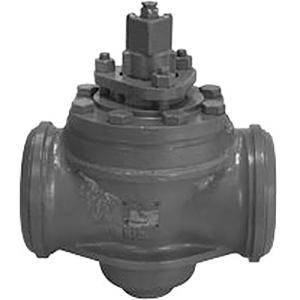

Size : 2" to 24”
Design Standard : API 6D / API599
Type : Pressure Balance
Pressure Rating : 150#, 300#, 400#, 600#, 900#, 1500# & 2500#
Material of Construction : Cast Iron, Carbon Steel, Stainless Steel, Hastalloy B & C Alloy-20. Allocy Steel (Castings / Forgings / Bar Stock)
End Connection : FLANGED END , BUTT WELD END
